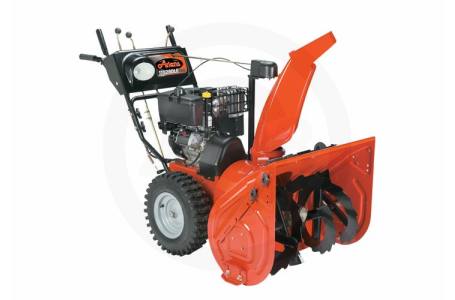

2008 Ariens 11528DLE Professional Sno-Thro®
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

If you feel unpredictable winter weather conditions are playing games with you; play back and triumph with the 11528DLE Sno-Thro® Professional! Features an 11.5 HP Tecumseh® Snow King® OHV engine, high housing to bring in more snow, steal serrated auger, and adjustable drift cutters to clear a 28” swath through any snow. Demonstrate dominance as The King of Snow™ over the next snow storm with the dependable and powerful 11528DLE Sno-Thro® Professional.

  • Halogen Headlights
  • Hand Warmers
  • Remote Deflector Control
  • Electric Start
  • Drift Cutters
  • Front weight kit: Optional
  • Clean-Out Device
  • Made in the U.S.A.
Specifications
  • Engine: 11.5 hp Tecumseh® Snow King® OHV
  • Engine Displacement (cc): 318 cc
  • Starting System: 120 Volt Electric
  • Clearing Width: 28 in. (71.2 cm)
  • Housing Height: 23.5 in. (59.7 cm)
  • Throwing Distance: 3 ft - 50 ft (0.9 m - 15.2 m)
  • Chute Turning Radius: 200 deg.
  • Chute Rotation: Quick Turn
  • Deflector Control: Remote
  • Interlock Control: Yes
  • Tire Size: 16" x 4.8" (40.6 x 12.2 cm)
  • Tire Type: Directional Snow Tread
  • Axle System: Automatic Traction Control
  • Fuel Tank Capacity: 1 gal. (3.8 l)
  • Drive Type: Disc-o-Matic
  • Speeds: Forward/Reverse: 6 mph / 2 mph
  • Gearcase: Cast Iron
  • Impeller Profile: Steel 3 Blade
  • Impeller Diameter: 14 in. (35.6 cm)
  • Auger Diameter: 16 in. (40.6 cm)
  • Auger Type: Steel Serrated
  • Skid Shoes: Commercial Duty
  • Length: 61.5 in. (156.3 cm)
  • Width: 30.5 in. (77.5 cm)
  • Height: 45 in. (14.3 cm)
  • Weight: 293 lbs. (132.9 kg)
  • Warranty Terms: 3-year limited consumer, 1-year limited commercial
Key Features
  • 11.5 HP Tecumseh® Snow King® OHV Engine
  • Automatic Traction Control
  • Steel THF Chute Discharges Snow Higher and Farther
  • Dual-Handle Interlock System
  • Disc-O-Matic® Drive System
  • Standard Halogen Headlight
Power Source
  • 11.5 HP Tecumseh® Snow King® OHV
  • 318 cc engine displacement
  • 12 volt key start
  • 4 quart fuel tank capacity
  • 6 speeds forward / 2 speeds reverse
Structure
  • Snow clearing width of 28"
  • Large housing height of 23.5"
  • Throwing distance of 3' - 50' depending on snow conditions
  • 200°, Quick-Turn chute rotation
  • Standard Dual Handle Interlock Control System
  • Remote deflector control
  • Heavy duty reversible skid shoes
  • Standard clean out device attached directly into unit for quick access
  • Standard drift cutters
Internal Systems
  • Commercial grade; cast iron Gear Case with alloy steel auger gears
  • High performance, 3-blade, 14" steel impeller
  • Steel Serrated augers
  • Disc-O-Matic™ drive
Tread Control
  • Traction control large, Directional Snow Tread 16" x 4.8" tires
  • Automatic traction control axle system

Specifications

Engine
Horse Power 11.5 hp
Engine Type 11.5 hp Tecumseh® Snow King® OHV
Engine Manufacturer Tecumseh®
General
Width Clearing Width: 28 in. (71.2 cm); Width: 30.5 in. (77.5 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 16" x 4.8" (40.6 x 12.2 cm)
Weight 293 lbs. (132.9 kg)
Fuel Capacity 1 gal. (3.8 l)

Compare Models

 Print








Year 2008
Manufacturer Ariens
Model 11528DLE Professional Sno-Thro®
Style Walk-Behind
Engine
Horse Power 11.5 hp
Engine Type 11.5 hp Tecumseh® Snow King® OHV
Engine Manufacturer Tecumseh®
Engine Displacement
General
Width Clearing Width: 28 in. (71.2 cm); Width: 30.5 in. (77.5 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 16" x 4.8" (40.6 x 12.2 cm)
Weight 293 lbs. (132.9 kg)
Fuel Capacity 1 gal. (3.8 l)
