2008 Ariens 1130DLE Deluxe Sno-Thro®
Request a Quote Financing Calculator Request a Brochure Financing Form

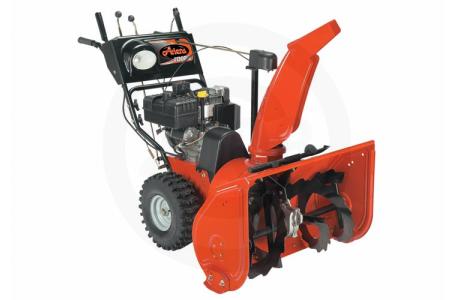

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

An Ariens® Deluxe Sno-Thro® makes light work of the heavy stuff, relentlessly carving out a path up to 32 inches wide. Always on the attack, these machines feature a heavy-duty XS Gear Case™ that provides additional power…especially in extreme snow conditions. And with remote deflector control you can accurately place whatever’s in your way right where you want it. That’s domination…that’s an Ariens Deluxe.

  • Halogen Headlights
  • Hand Warmers
  • Remote Deflector Control
  • Electric Start
  • Drift Cutters: Optional
  • Front weight kit: Optional
  • Clean-Out Device
  • Made in the U.S.A
Specifcations
  • Engine: 11 hp Tecumseh® Snow King® L-Head
  • Engine Displacement (cc): 358 cc
  • Starting System: 120 Volt Electric
  • Clearing Width: 30 in. (76.2 cm)
  • Housing Height: 21 in. (53.5 cm)
  • Throwing Distance: 3 ft - 50 ft (0.9 m - 15.2 m)
  • Chute Turning Radius: 200 deg.
  • Chute Rotation: Quick Turn
  • Deflector Control: Remote
  • Interlock Control: Yes
  • Tire Size: 15"x5"/38.1x 12.7 cm
  • Tire Type: Directional Snow Tread
  • Axle System: automatic traction control
  • Fuel Tank Capacity: 1 gal. (3.8 l)
  • Drive Type: Disc-o-Matic
  • Speeds: Forward/Reverse: 6 / 2
  • Gearcase: XS Aluminum
  • Impeller Profile: Steel 3 Blade
  • Impeller Diameter: 14 in. (35.6 cm)
  • Auger Diameter: 14 in. (35.6 cm)
  • Auger Type: Steel Serrated
  • Skid Shoes: Reversible
  • Length: 61.5 in. (156.3 cm)
  • Width: 32.5 in. (82.6 cm)
  • Height: 45 in. (114.3 cm)
  • Weight: 244 lbs. (110.7 kg)
  • Warranty Terms: 3-year limited consumer, 90-day limited commercial
Key Features
  • 11 HP Tecumseh® Snow King® L-Head Engine
  • Automatic Traction Control
  • Steel THF Chute Discharges Snow Higher and Farther
  • Dual-Handle Interlock System
  • Disc-O-Matic™ Drive System
  • Standard Halogen Headlight
Power Source
  • 11 HP Tecumseh® Snow King® L-Head Engine
  • 358 cc engine displacement
  • 120 volt electric start with recoil backup
  • 4 quart fuel tank capacity
  • 6 speeds forward / 2 speeds reverse
Structure
  • Snow clearing width of 30"
  • Large housing height of 21"
  • Throwing distance of 3' - 50' depending on snow conditions
  • 200°, Quick-Turn chute rotation
  • Standard Dual Handle Interlock Control System
  • Remote deflector control
  • Heavy duty reversible skid shoes
  • Standard halogen light
  • Standard clean out device attached directly into unit for quick access
Internal Systems
  • Heavy-duty aluminium XS® Gear Case with alloy steel auger gears
  • High performance, 3-blade, 14" steel impeller
  • Steel Serrated augers
  • Disc-O-Matic™ drive
Tread Control
  • Traction control large, Directional Snow Trread 15" x 5" tires
  • Automatic traction control axle system

Specifications

Engine
Horse Power 11 hp
Engine Type 11 hp Tecumseh® Snow King® L-Head
Engine Manufacturer Tecumseh®
General
Width Clearing Width: 30 in. (76.2 cm); Width: 32.5 in. (82.6 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 15"x5"/38.1x 12.7 cm
Weight 244 lbs. (110.7 kg)
Fuel Capacity 1 gal. (3.8 l)

Compare Models

 Print








Year 2008
Manufacturer Ariens
Model 1130DLE Deluxe Sno-Thro®
Style Walk-Behind
Engine
Horse Power 11 hp
Engine Type 11 hp Tecumseh® Snow King® L-Head
Engine Manufacturer Tecumseh®
Engine Displacement
General
Width Clearing Width: 30 in. (76.2 cm); Width: 32.5 in. (82.6 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 15"x5"/38.1x 12.7 cm
Weight 244 lbs. (110.7 kg)
Fuel Capacity 1 gal. (3.8 l)
