2008 Ariens 11528 DLET Sno-Thro®
Request a Quote Financing Calculator Request a Brochure Financing Form

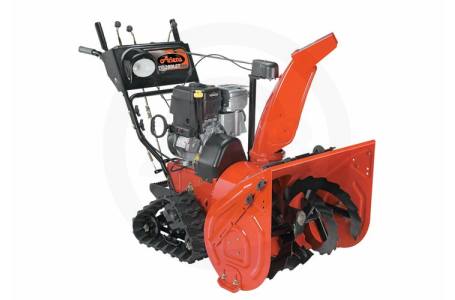

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

In any winter weather, in any condition, on any terrain the 11528DLET Sno-Thro® Pro-Track doesn’t discriminate.. Whether the snow is ice, powder, wet, heavy, or slush the 11528DLET, has all the muscle, traction and maneuverability to take on the toughest conditions. The 11.5 HP Briggs & Stratton® Intek Snow OHV engine, steal serrated auger, adjustable drift cutters and two 5.5” wide directional snow tracks to clear a 28” swath anywhere.


Demonstrate dominance as The King of Snow™ over the next snow storm with the 11528DLET and pursue your own tracks.

  • Halogen Headlights
  • Hand Warmers
  • Remote Deflector Control
  • Electric Start
  • Drift Cutters
  • Front weight kit: Optional
  • Clean-Out Device
  • Made in the U.S.A.
Specifications
  • Engine: 11.5 hp Briggs & Stratton® Snow Intek OHV Engine
  • Engine Displacement (cc): 318 cc
  • Starting System: 120 Volt Electric
  • Clearing Width: 28 in. (711 cm)
  • Housing Height: 23.5 in. (59.7 cm)
  • Throwing Distance: 3 ft - 50 ft (0.9 m - 15.2 m)
  • Chute Turning Radius: 200 deg.
  • Chute Rotation: Quick-Turn
  • Deflector Control: Remote
  • Interlock Control: Yes
  • Tire Size: 5.5 in. (14 cm) Wide
  • Tire Type: Directional Snow Trac
  • Axle System: Traction Control with Axle-Mounted Lockout
  • Fuel Tank Capacity: 1 gal. (3.8 l)
  • Drive Type: Disc-o-Matic
  • Speeds: Forward/Reverse: 6 / 2
  • Gearcase: Cast Iron
  • Impeller Profile: Steel 3 Blade
  • Impeller Diameter: 14 in. (35.6 cm)
  • Auger Diameter: 16 in. (40.6 cm)
  • Skid Shoes: Commercial Duty
  • Length: 61.5 in. (156.3 cm)
  • Width: 30.5 in. (77.5 cm)
  • Height: 45 in. (114.3 cm)
  • Weight: 343 lbs. (155.6 kg)
  • Warranty Terms: 3-year limited consumer, 1-year limited commercial
Key Features
  • 11.5 HP Tecumseh® Snow King® OHV Engine
  • Directional Snow Trac
  • Traction Control with Axle-Mounted Lockout Control
  • Steel THF Chute Discharges Snow Higher and Farther
  • Dual-Handle Interlock System
  • Disc-O-Matic® Drive System
  • Standard Halogen Headlight
Power Source
  • 11.5 HP Tecumseh® Snow King® OHV engine
  • 318 cc engine displacement
  • 120 volt electric start with recoil backup
  • 4 quart fuel tank capacity
  • 6 speeds forward / 2 speeds reverse
Structure
  • Snow clearing width of 28"
  • Large housing height of 23.5"
  • Throwing distance of 3' - 50' depending on snow conditions
  • 200°, Quick-Turn chute rotation
  • Standard Dual Handle Interlock Control System
  • Remote deflector control
  • Commercial duty reversible skid shoes
  • Standard clean out device attached directly into unit for quick access
  • Standard drift cutters
Internal Systems
  • Commercial grade; cast iron Gear Case with alloy steel auger gears
  • High performance, 3-blade, 14" steel impeller
  • Steel Serrated augers
  • Disc-O-Matic™ drive
Tread Control
  • Extreme traction, 5.5" Directional Snow Trac
  • Traction control with axle-mounted lockout

Specifications

Engine
Horse Power 11.5 hp
Engine Type 11.5 hp Briggs & Stratton® Snow Intek OHV Engine
Engine Manufacturer Briggs & Stratton®
General
Width Clearing Width: 28 in. (711 cm); Width: 30.5 in. (77.5 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 5.5 in. (14 cm) Wide Directional Snow Trac
Weight 343 lbs. (155.6 kg)
Fuel Capacity 1 gal. (3.8 l)

Compare Models

 Print








Year 2008
Manufacturer Ariens
Model 11528 DLET Sno-Thro®
Style Walk-Behind
Engine
Horse Power 11.5 hp
Engine Type 11.5 hp Briggs & Stratton® Snow Intek OHV Engine
Engine Manufacturer Briggs & Stratton®
Engine Displacement
General
Width Clearing Width: 28 in. (711 cm); Width: 30.5 in. (77.5 cm)
Starting 120 Volt Electric
Max Discharge 50 ft. (15.2 m)
Drive Type Disc-o-Matic
Wheel Size 5.5 in. (14 cm) Wide Directional Snow Trac
Weight 343 lbs. (155.6 kg)
Fuel Capacity 1 gal. (3.8 l)
