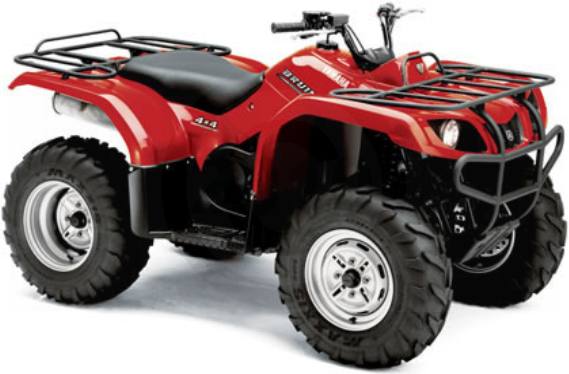

2010 Yamaha Bruin 350
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Details
    • Engine: 4-stroke, SOHC, single, air-cooled
    • Displacement: 348cc
    • Bore and Stroke: 83 x 64.5mm
    • Compression Ratio: 9.2:1
    • Carburetion: Mikuni 33mm BSR
    • Ignition: DC - CDI
    • Starting: electric / recoil
    • Lubrication: wet sump with fan assist oil cooler
    • Oil Capacity: 3.7 litres
    • Transmission: Yamaha Ultramatic V-Belt / F,N,R
    • Final Drive: On-command push button 2WD / 4WD, shaft drive
    Chassis Details
    • Suspension (Front): independent double wishbone w/5-way Preload Adjustment
    • Suspension (Rear): Swing arm w/ 5-way Preload Adjustment
    • Brakes (Front): dual 180mm hydraulic disc
    • Brakes (Rear): sealed drum
    • Tires (Front): Maxxis AT25x8-12
    • Tires (Rear): Maxxis AT25x10-12
    Critical Data
    • Length: 1,984mm (78.1")
    • Width: 1,084mm (42.7")
    • Height: 1,120mm (44.1")
    • Wheelbase: 1,232mm (48.5")
    • Ground Clearance: 246mm (9.7")
    • Seat Height: 828mm (32.6")
    • Dry Weight: 243 kg (536 lb)
    • Fuel Capacity: 14 litres
    • Colour(s): Dark Blue, Red, Dark Green
    More Features
    • Basic speed and warning lights on an analogue speedometer.
    • Forward, neutral and reverse on single-range transmission.
    • Key electrical components located under seat (fuses /starter solenoid /CDI Igniter / numerous relays) for added protection against Mother Nature.
    • Steel reinforced plastic flooboards with raised integrated serrated footpegs for excellent traction regardless of conditions.
    • Handlebar-mounted choke lever that can be operated with gloves or mitts.
    • Sealed marine-style electrical connectors prevents water from entering electrical components and wiring.
    • Large capacity racks, front and rear, with crinkle coat paint process for superior corrosion resistance.

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, single, air-cooled
    Displacement 348cc
    Bore x Stroke 83 x 64.5mm
    Engine Cooling air-cooled
    Starting System Ignition: DC - CDI; Starting: electric / recoil
    Chassis
    Front Suspension independent double wishbone w/5-way Preload Adjustment
    Front Brake Type dual 180mm hydraulic disc
    Front Tires Maxxis AT25x8-12
    Rear Suspension Swing arm w/ 5-way Preload Adjustment
    Rear Brake Type sealed drum
    Rear Tires Maxxis AT25x10-12
    Dimensions/Capacities
    Dry Weight 243 kg (536 lb)
    Fuel Capacity 14 litres
    Ground Clearance 246mm (9.7")
    Machine Dimensions (LxWxH) Length: 1,984mm (78.1"); Width: 1,084mm (42.7"); Height: 1,120mm (44.1")
    Wheelbase 1,232mm (48.5")
    Drive Train
    Final Drive On-command push button 2WD / 4WD, shaft drive
    Transmission Yamaha Ultramatic V-Belt / F,N,R
    General
    Colors Dark Blue, Red, Dark Green

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Bruin 350
    Style Utility
    MSRP* $7,499.00
    Chassis
    Front Suspension independent double wishbone w/5-way Preload Adjustment
    Front Travel
    Front Brake Type dual 180mm hydraulic disc
    Front Tires Maxxis AT25x8-12
    Rear Suspension Swing arm w/ 5-way Preload Adjustment
    Rear Travel
    Rear Brake Type sealed drum
    Rear Tires Maxxis AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 243 kg (536 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 14 litres
    Ground Clearance 246mm (9.7")
    Machine Dimensions (LxWxH) Length: 1,984mm (78.1"); Width: 1,084mm (42.7"); Height: 1,120mm (44.1")
    Wheelbase 1,232mm (48.5")
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD, shaft drive
    Transmission Yamaha Ultramatic V-Belt / F,N,R
    Engine
    Engine Type 4-stroke, SOHC, single, air-cooled
    Displacement 348cc
    Bore x Stroke 83 x 64.5mm
    Cylinders
    Engine Cooling air-cooled
    Fuel System
    Starting System Ignition: DC - CDI; Starting: electric / recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Dark Blue, Red, Dark Green
