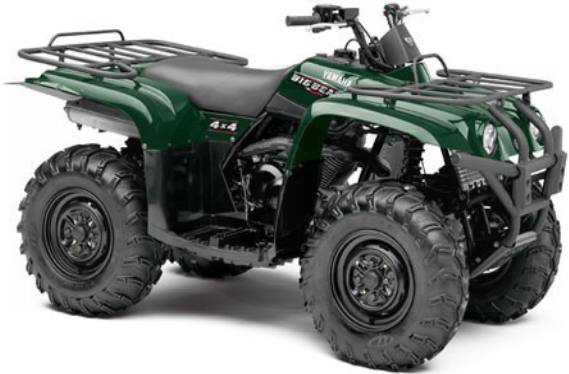

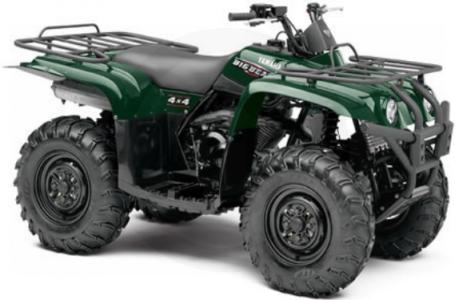

2010 Yamaha Big Bear 400
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

ENGINE
The Big Bear is powered by a 386cc, 4-Stroke Single, Air/Oil Cooled with fan assist, and is one of Yamaha's most reliable ATV engines.

TORQUE
Maximum torque occurs at a low 5,500 rpm for heavy duty use.

TRANSMISSION
5-speed semi-automatic with reverse, designed for extreme conditions where water and mud can't be avoided.

ON-COMMAND 4WD
Push-button servo-controlled "On-Command" system allows you to switch between 2WD and limited-slip 4WD with the simple push of a dash mounted button. Real 4-wheel drive when you need it. This puts you in total control... you decide when you need 4 wheel drive... the machine doesn't decide for you.

IRS
Independent Rear Suspension (IRS) for improved ground clearance and ride comfort.

LIGHTS
Dual 30-watt Krypton multi-reflector sealed headlights with replaceable bulbs provide excellent lighting, prevents water penetration, and simplifies maintenance and reduces cost.

FLOORBOARDS
Steel reinforced plastic floorboards with raised integrated serrated foot pegs and extra-wide evacuation holes for excellent traction regardless of conditions.

TIRES
25-inch ITP Mud Lites with more aggressive tire tread pattern for greater traction in extreme conditions

FENDER EXTENSIONS
Improve mud and splash protection.

    Engine Specifications
    • Engine: 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    • Displacement: 386 cc
    • Bore and Stroke: 83mm x 71.5mm
    • Compression Ratio: 8.6 : 1
    • Carburetion: Mikuni 33mm BSR
    • Ignition: DC - CDI
    • Starting: Electric w/ Auxiliary Pull
    • Lubrication: wet sump
    • Transmission: 5-Speed, Automatic Clutch w/ Reverse
    • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Chassis Specifications
    • Suspension (Front): Independent Double Wishbone, w/ 5-way Preload Adjustment.
    • Suspension (Rear): Independent Double Wishbone, w/ 5-way Preload Adjustment.
    • Brakes (Front): Dual Hydraulic Disc
    • Brakes (Rear): Fully Sealed , Oil Bath, Multi Disc
    • Tires (Front): ITP Mud Lite 25x8-12
    • Tires (Rear): ITP Mud Lite 25x10-12
    Critical Data
    • Length: 2016 mm (79.4 in)
    • Width: 1116 mm (43.9 in)
    • Height: 1187 mm (46.7 in)
    • Wheelbase: 1230 mm (48.4 in)
    • Ground Clearance: 267mm(10.5 in)
    • Seat Height: 895 mm (35.2 in)
    • Dry Weight: 265 kg (593.0 lb)
    • Fuel Capacity: 15 litres
    • Towing Capacity: 410 kg (904 lb)
    • Colour(s): Dark Blue, Dark Green
    Additional Features
    • Lower front bumper plastic skid plates. 45 degree attack angle allows unit to slide over taller obstacles without getting hung-up. Plastic design resists dents and corrosion.
    • Rear sway bar added for limited chassis roll and greater terrainability.
    • Spin-on oil filter simplifies oil changes.
    • Plastic under frame skid plate helps protect frame from damage and allows units to slide over rocks and logs.
    • 25-inch ITP Mud Lites with more aggressive tire tread patter for greater traction
    • Sealed marine-style electrical connectors.
    • Large-capacity racks, front and rear with crinkle coat paint process for superior corrosion resistance.
    • Electric starting with recoil backup (electric starter will work in any gear)
    • Reusable foam air filter for easy maintenance and maximum power.
    • Limited slip front differential. The front differential is centrally located with equal-length driveshafts to each weel, providing four-wheel drive performance with easy steering.
    • Deeply padded wide seat and specially designed low-effort steering for long day comfort.

    Specifications

    Engine
    Engine Type 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    Displacement 386 cc
    Bore x Stroke 83mm x 71.5mm
    Engine Cooling Air/Oil Cooler w/fan
    Starting System Ignition: DC - CDI; Starting: Electric w/ Auxiliary Pull
    Chassis
    Front Suspension Independent Double Wishbone, w/ 5-way Preload Adjustment.
    Front Brake Type Dual Hydraulic Disc
    Front Tires ITP Mud Lite 25x8-12
    Rear Suspension Independent Double Wishbone, w/ 5-way Preload Adjustment.
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires ITP Mud Lite 25x10-12
    Dimensions/Capacities
    Dry Weight 265 kg (593.0 lb)
    Towing Capacity 410 kg (904 lb)
    Fuel Capacity 15 litres
    Ground Clearance 267mm(10.5 in)
    Machine Dimensions (LxWxH) Length: 2016 mm (79.4 in); Width: 1116 mm (43.9 in); Height: 1187 mm (46.7 in)
    Wheelbase 1230 mm (48.4 in)
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission 5-Speed, Automatic Clutch w/ Reverse
    General
    Colors Dark Blue, Dark Green

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Big Bear 400
    Style Utility
    Chassis
    Front Suspension Independent Double Wishbone, w/ 5-way Preload Adjustment.
    Front Travel
    Front Brake Type Dual Hydraulic Disc
    Front Tires ITP Mud Lite 25x8-12
    Rear Suspension Independent Double Wishbone, w/ 5-way Preload Adjustment.
    Rear Travel
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires ITP Mud Lite 25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 265 kg (593.0 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 410 kg (904 lb)
    Fuel Capacity 15 litres
    Ground Clearance 267mm(10.5 in)
    Machine Dimensions (LxWxH) Length: 2016 mm (79.4 in); Width: 1116 mm (43.9 in); Height: 1187 mm (46.7 in)
    Wheelbase 1230 mm (48.4 in)
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission 5-Speed, Automatic Clutch w/ Reverse
    Engine
    Engine Type 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    Displacement 386 cc
    Bore x Stroke 83mm x 71.5mm
    Cylinders
    Engine Cooling Air/Oil Cooler w/fan
    Fuel System
    Starting System Ignition: DC - CDI; Starting: Electric w/ Auxiliary Pull
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Dark Blue, Dark Green
    Warranty
