New » Yamaha » Kodiak 350
Model Quick Search

$8,499.00

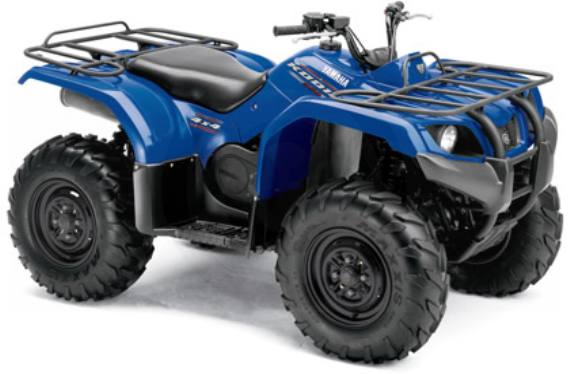

2010 Yamaha Kodiak 350
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

ENGINE
The Kodiak 350 shares the same long lasting and well proven 348cc engine from the Bruin 350. Durable fuel efficient and versatile.

TRANSMISSION
Fully automatic transmission with engine brake for increased rider confidence, reduced brake component wear, and no freewheeling when off gas or down hills.

ON-COMMAND 4WD
Push-button servo-controlled "On-Command" system allows you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD - all with the simple push of a dash mounted button. Real 4-wheel drive when you need it. With Diff-lock engaged, there's no need to wait for one wheel to spin. You have traction to all 4 wheels, immediately. This puts you in total control... you decide when you need 4 wheel drive... the machine doesn't decide for you.

ELECTRIC STARTER
Electric starting with recoil backup (electric starter will work in any gear)

LIGHTS
Dual 30-watt Krypton multi-reflector sealed headlights with replaceable bulbs provide excellent lighting, prevents water penetration, and simplifies maintenance and reduces cost.

FLOORBOARDS
Steel reinforced plastic floorboards with raised integrated serrated foot pegs for excellent traction regardless of conditions.

TIRES
25-inch Maxxis tires with more aggressive tire tread pattern for greater traction and excellent durability.

BUMPER
Lower front bumper plastic skid plates. 45 degree attack angle allows unit to slide over taller obstacles without getting hung-up. Plastic design resists dents and corrosion.

    Engine Specifications
    • Engine: 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    • Displacement: 348 cc
    • Bore and Stroke: 83mm x 64.5mm
    • Compression Ratio: 9.20:1
    • Carburetion: Mikuni BSR33
    • Ignition: DC - CDI
    • Starting: Electric w/ Recoil Backup
    • Lubrication: wet sump
    • Oil Capacity: 3.10 L
    • Transmission: Yamaha Ultramatic V-Belt / F,N,R
    • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Chassis Specifications
    • Suspension (Front): Double Wishbone
    • Suspension (Rear): Double Wishbone
    • Brakes (Front): Dual Disc
    • Brakes (Rear): Fully Sealed , Oil Bath, Multi Disc
    • Tires (Front): AT25x8-12
    • Tires (Rear): AT25x10-12
    Critical Data
    • Length: 1,995 mm (78.5")
    • Width: 1,095 mm (43.1")
    • Height: 1,120 mm (44.1")
    • Wheelbase: 1,235 mm (48.6")
    • Ground Clearance: 245 mm (9.6")
    • Seat Height: 830 mm (32.7")
    • Dry Weight: 262.4 kg (578 lb)
    • Fuel Capacity: 13.5 litres
    • Towing Capacity: 500 kg (1,100 lb)
    • Colour(s): Dark Blue, Dark Green
    Additional Features
    • IRS independent rear suspension, sway bar controlled. Sway bar added for limited chassis roll and great terrainability.
    • Spin-on oil filter simplifies oil changes.
    • High-positioned carb air intake and clutch intake and exhaust vents prevent water from entering carb or V-belt cover.
    • Grizzly type styling with new fenders and bumper. Excellent mud and splash protection.
    • Full plastic under frame skid plate protects engine and frame from damage and allows units to slide over rocks and logs.
    • 25-inch Maxxis tires with aggressive tire tread pattern for greater traction and excellent durability.
    • Sealed marine-style electrical connectors.
    • Large-capacity racks, front and rear with crinkle coat paint process for superior corrosion resistance.
    • Steel reinforced plastic flooboards with raised integrated serrated footpegs for excellent traction regardless of conditions.
    • Handlebar-mounted choke lever that can be operated with gloves or mitts.

    Specifications

    Engine
    Engine Type 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    Displacement 348 cc
    Bore x Stroke 83mm x 64.5mm
    Engine Cooling Air/Oil Cooler w/fan
    Starting System Ignition: DC - CDI; Starting: Electric w/ Recoil Backup
    Chassis
    Front Suspension Double Wishbone
    Front Brake Type Dual Disc
    Front Tires AT25x8-12
    Rear Suspension Double Wishbone
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires AT25x10-12
    Dimensions/Capacities
    Dry Weight 262.4 kg (578 lb)
    Towing Capacity 500 kg (1,100 lb)
    Fuel Capacity 13.5 litres
    Ground Clearance 245 mm (9.6")
    Machine Dimensions (LxWxH) Length: 1,995 mm (78.5"); Width: 1,095 mm (43.1"); Height: 1,120 mm (44.1")
    Wheelbase 1,235 mm (48.6")
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission Yamaha Ultramatic V-Belt / F,N,R
    General
    Colors Dark Blue, Dark Green

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Kodiak 350
    Style Utility
    MSRP* $8,499.00
    Chassis
    Front Suspension Double Wishbone
    Front Travel
    Front Brake Type Dual Disc
    Front Tires AT25x8-12
    Rear Suspension Double Wishbone
    Rear Travel
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 262.4 kg (578 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 500 kg (1,100 lb)
    Fuel Capacity 13.5 litres
    Ground Clearance 245 mm (9.6")
    Machine Dimensions (LxWxH) Length: 1,995 mm (78.5"); Width: 1,095 mm (43.1"); Height: 1,120 mm (44.1")
    Wheelbase 1,235 mm (48.6")
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission Yamaha Ultramatic V-Belt / F,N,R
    Engine
    Engine Type 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
    Displacement 348 cc
    Bore x Stroke 83mm x 64.5mm
    Cylinders
    Engine Cooling Air/Oil Cooler w/fan
    Fuel System
    Starting System Ignition: DC - CDI; Starting: Electric w/ Recoil Backup
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Dark Blue, Dark Green
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
