Yamaha Kodiak 450 Camo AG NOR LTD. Earlton, ON (705) 563-2134

Showcase Product Detail

New » Yamaha » Kodiak 450 Camo

	Starting At: $10,299.00

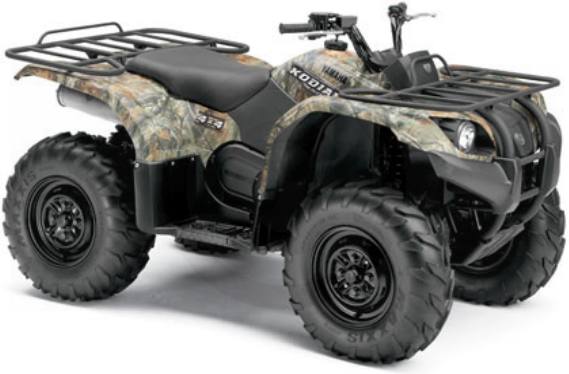

2010 Yamaha Kodiak 450 Camo

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

EXCELLENT POWER TO WEIGHT RATIO
Power is nothing if it comes with a bunch of additional weight. Considering the kodiak 450 is lighter than many of the competitors in this class and this bear's power to weight ratio offers some hefty advantages over some of the bigger and bulkier ATVs. Less weight has an effect on everything from handling and acceleration to hill climbing and mud prowess.

ULTRAMATIC TRANSMISSION
Fully automatic transmission with engine brake and automotive style transmission lock parking mechanism.

ON-COMMAND 4WD
Push-button servo-controlled "On-Command" system allows you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD - all with the simple push of a dash mounted button. Real 4-wheel drive when you need it. With Diff-lock engaged, there's no need to wait for one wheel to spin. You have traction to all 4 wheels, immediately. This puts you in total control... you decide when you need 4 wheel drive... the machine doesn't decide for you.

MAXXIS TIRE WITH AGGRESSIVE LUG
These Maxxis tires offer excellent traction over a wide variety of terrain, including mud, rock, sand, and hard packed trail, without compromising ride comfort.

COOLING SYSTEM
High-capacity cooling system with high-mounted fan-cooled radiator for consistent engine performance, excellent durability and protection from sticks and rocks.

SUSPENSION
IRS independent rear suspension, sway bar controlled. Sway bar added for limited chassis roll and great terrainability.

SPEED OVERRIDE
Differential lock speed override switch (forward only) allows owner to override the speed limiter for certain conditions.

ELECTRIC STARTER
Electric starting with recoil backup (electric starter will work in any gear).

FRAME
Computer-designed steel tube frame and rubber-mounted engine for a rugged, durable design and reduced vibration.

INFORMATION CENTRE
Digital information centre LCD display for speed, odometer and on-Command functions, as well as LED warning lamps.

DC TERMINAL
12-volt D.C. terminal provides a convenient power source for such accessories as cellular phones, handheld lights or GPS.

HITCH RECEIVER
2" box style hitch receiver make towing simpler

REAR BRAKE
Rear "wet" brake uses friction plates immersed in an oil bath and is sealed to keep out water and debris. This provides consistent braking performance, regardless of riding conditions.

Engine Specifications

Engine: 4-stroke, liquid-cooled, single
Displacement: 421cc
Bore and Stroke: 84.5 x 75mm
Compression Ratio: 10:1
Carburetion: Mikuni BSR33
Ignition: DC-CDI
Starting: electric/recoil
Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive

Chassis Specifications

Suspension (Front): independent double wishbone
Suspension (Rear): independent rear suspension with sway bar
Brakes (Front): dual 180mm, hydraulic discs
Brakes (Rear): Fully Sealed , Oil Bath, Multi Disc
Tires (Front): Maxxis AT25x8-12
Tires (Rear): Maxxis AT25x10-12

Critical Data

Length: 1,991mm (78.4'')
Width: 1,093mm (43.0'')
Height: 1,120mm (44.1'')
Wheelbase: 1,233mm (48.5'')
Ground Clearance: 274mm (10.8'')
Seat Height: 850mm (33.5'')
Dry Weight: 268kg (591 lb)
Fuel Capacity: 15 litres
Towing Capacity: 500 kg (1,100 lb)
Colour(s): Dark Blue, Dark Green

Additional Features

Internal engine counterbalancer minimizes engine vibration to rider.
Spin-on oil filter simplifies oil changes.
High-positioned carb air intake and clutch intake and exhaust vents prevent water from entering carb or V-belt cover.
4WD front differential lock. Positive mechanical lock-up for maximum traction in 4WD. New forward speed override switch.
Wide Grizzly type front fenders and new bumber design with excellent mud and splash protection.
Dual 30-watt sealed headlights with replaceable bulbs provides excellent lighting, prevents water penetration and simplifies maintenance and reduces cost.
25-inch Maxxis tires with all-new, more aggressive tire tread pattern for great traction and excellent durability.
Sealed marine-style electrical connectors prevents water from entering electrical components and wiring.

Specifications

Engine
Engine Type	4-stroke, liquid-cooled, single
Displacement	421cc
Bore x Stroke	84.5 x 75mm
Engine Cooling	Liquid-Cooled
Starting System	Ignition: DC-CDI; Starting: electric/recoil
Chassis
Front Suspension	independent double wishbone
Front Brake Type	dual 180mm, hydraulic discs
Front Tires	Maxxis AT25x8-12
Rear Suspension	independent rear suspension with sway bar
Rear Brake Type	Fully Sealed , Oil Bath, Multi Disc
Rear Tires	Maxxis AT25x10-12
Dimensions/Capacities
Dry Weight	268kg (591 lb)
Towing Capacity	500 kg (1,100 lb)
Fuel Capacity	15 litres
Ground Clearance	274mm (10.8'')
Machine Dimensions (LxWxH)	Length: 1,991mm (78.4''); Width: 1,093mm (43.0''); Height: 1,120mm (44.1'')
Wheelbase	1,233mm (48.5'')
Drive Train
Final Drive	On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Transmission	Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
General
Colors	Realtree® AP HD™ Camouflage

Compare Models

Chassis

Year	2010
Manufacturer	Yamaha
Model	Kodiak 450 Camo
Style	Utility
MSRP*	$10,299.00
Front Suspension	independent double wishbone
Front Travel
Front Brake Type	dual 180mm, hydraulic discs
Front Tires	Maxxis AT25x8-12
Rear Suspension	independent rear suspension with sway bar
Rear Travel
Rear Brake Type	Fully Sealed , Oil Bath, Multi Disc
Rear Tires	Maxxis AT25x10-12
Frame
Dimensions/Capacities
Dry Weight	268kg (591 lb)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity	500 kg (1,100 lb)
Fuel Capacity	15 litres
Ground Clearance	274mm (10.8)
Machine Dimensions (LxWxH)	Length: 1,991mm (78.4); Width: 1,093mm (43.0); Height: 1,120mm (44.1)
Wheelbase	1,233mm (48.5)
Drive Train
Drive Train
Final Drive	On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Transmission	Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Engine
Engine Type	4-stroke, liquid-cooled, single
Displacement	421cc
Bore x Stroke	84.5 x 75mm
Cylinders
Engine Cooling	Liquid-Cooled
Fuel System
Starting System	Ignition: DC-CDI; Starting: electric/recoil
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors	Realtree® AP HD™ Camouflage
Warranty

Current Promotions

There are currently no promotions available for this product.
