New » Yamaha » Kodiak 450
Model Quick Search

$9,949.00

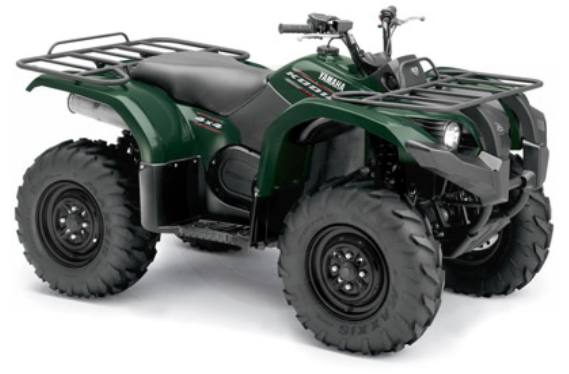

2010 Yamaha Kodiak 450
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Specifications
    • Engine: 4-stroke, liquid-cooled, single
    • Displacement: 421cc
    • Bore and Stroke: 84.5 x 75mm
    • Compression Ratio: 10:1
    • Carburetion: Mikuni BSR33
    • Ignition: DC-CDI
    • Starting: electric/recoil
    • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Chassis Specifications
    • Suspension (Front): independent double wishbone
    • Suspension (Rear): independent rear suspension with sway bar
    • Brakes (Front): dual 180mm, hydraulic discs
    • Brakes (Rear): Fully Sealed , Oil Bath, Multi Disc
    • Tires (Front): Maxxis AT25x8-12
    • Tires (Rear): Maxxis AT25x10-12
    Critical Data
    • Length: 1,991mm (78.4'')
    • Width: 1,093mm (43.0'')
    • Height: 1,120mm (44.1'')
    • Wheelbase: 1,233mm (48.5'')
    • Ground Clearance: 274mm (10.8'')
    • Seat Height: 850mm (33.5'')
    • Dry Weight: 268kg (591 lb)
    • Fuel Capacity: 15 litres
    • Towing Capacity: 500 kg (1,100 lb)
    • Colour(s): Dark Blue, Dark Green
    Additional Features
    • Internal engine counterbalancer minimizes engine vibration to rider.
    • Spin-on oil filter simplifies oil changes.
    • High-positioned carb air intake and clutch intake and exhaust vents prevent water from entering carb or V-belt cover.
    • 4WD front differential lock. Positive mechanical lock-up for maximum traction in 4WD. New forward speed override switch.
    • Wide Grizzly type front fenders and new bumber design with excellent mud and splash protection.
    • Dual 30-watt sealed headlights with replaceable bulbs provides excellent lighting, prevents water penetration and simplifies maintenance and reduces cost.
    • 25-inch Maxxis tires with all-new, more aggressive tire tread pattern for great traction and excellent durability.
    • Sealed marine-style electrical connectors prevents water from entering electrical components and wiring.

    Specifications

    Engine
    Engine Type 4-stroke, liquid-cooled, single
    Displacement 421cc
    Bore x Stroke 84.5 x 75mm
    Engine Cooling Liquid-Cooled
    Starting System Ignition: DC-CDI; Starting: electric/recoil
    Chassis
    Front Suspension independent double wishbone
    Front Brake Type dual 180mm, hydraulic discs
    Front Tires Maxxis AT25x8-12
    Rear Suspension independent rear suspension with sway bar
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires Maxxis AT25x10-12
    Dimensions/Capacities
    Dry Weight 268kg (591 lb)
    Towing Capacity 500 kg (1,100 lb)
    Fuel Capacity 15 litres
    Ground Clearance 274mm (10.8'')
    Machine Dimensions (LxWxH) Length: 1,991mm (78.4''); Width: 1,093mm (43.0''); Height: 1,120mm (44.1'')
    Wheelbase 1,233mm (48.5'')
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    General
    Colors Dark Blue, Dark Green

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Kodiak 450
    Style Utility
    MSRP* $9,949.00
    Chassis
    Front Suspension independent double wishbone
    Front Travel
    Front Brake Type dual 180mm, hydraulic discs
    Front Tires Maxxis AT25x8-12
    Rear Suspension independent rear suspension with sway bar
    Rear Travel
    Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
    Rear Tires Maxxis AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 268kg (591 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 500 kg (1,100 lb)
    Fuel Capacity 15 litres
    Ground Clearance 274mm (10.8)
    Machine Dimensions (LxWxH) Length: 1,991mm (78.4); Width: 1,093mm (43.0); Height: 1,120mm (44.1)
    Wheelbase 1,233mm (48.5)
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    Engine
    Engine Type 4-stroke, liquid-cooled, single
    Displacement 421cc
    Bore x Stroke 84.5 x 75mm
    Cylinders
    Engine Cooling Liquid-Cooled
    Fuel System
    Starting System Ignition: DC-CDI; Starting: electric/recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Dark Blue, Dark Green
