New » Yamaha » Grizzly 700 FI EPS Camo AP HD
Model Quick Search

$12,949.00

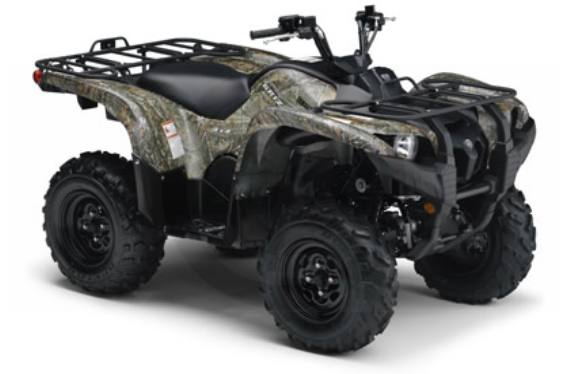

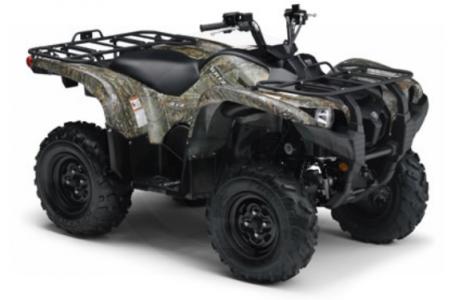

2010 Yamaha Grizzly 700 FI EPS Camo AP HD
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Specifications
    • Engine: 4-stroke, SOHC, liquid cooled, 4-valve, single
    • Displacement: 686 cc
    • Bore and Stroke: 102 x 84mm
    • Compression Ratio: 9.2: 1
    • Carburetion: Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
    • Ignition: computerized DC-CDI
    • Starting: electric w/auto-decompression
    • Lubrication: wet sump
    • Oil Capacity: 2.4L
    • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Chassis Specifications
    • Suspension (Front): independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    • Suspension (Rear): independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    • Brakes (Front): Hydraulic Discs
    • Brakes (Rear): Hydraulic Discs
    • Tires (Front): Dunlop KT421 tubeless, AT25 x 8-12
    • Tires (Rear) : Dunlop KT425 tubeless, AT25 x 10-12
    Critical Data
    • Length: 2065 mm (81.3")
    • Width: 1180 mm (46.5")
    • Height: 1240 mm (48.8")
    • Wheelbase: 1250 mm (49.2")
    • Ground Clearance: 300 mm (11.8")
    • Seat Height: 905 mm (35.6")
    • Dry Weight: 270 kg (600 lb)
    • Fuel Capacity: 20 litres (5.3 U.S. gal)
    • Towing Capacity: 600 kg (1,322 lb)
    • Colour(s): Realtree® AP HD™ Camouflage
    Electronic Power Steering Features
    • Reduces steering effort in all situations, helping to reduce rider fatigue while enhancing rider confidence and ease of operation
    • Speed and torque sensitive
    • Improves stability on virtually all types of terrain at a wide range of speeds
    • Helps isolate the rider from external feedback from obstacles that come in contact with the front wheels.
    Additional Features
    • Roller bearing rocker arms for reduced friction and improved engine performance
    • Carburized Chrome-Moly connecting rod for improved durability
    • Airbox design has centrifugal debris trap to improve air flow
    • Flat type foam air filter for easy cleaning
    • Straight drive shaft layout for reduced vibration and improved durability
    • Gull-wing front a-arms for improved ground clearance
    • Air cushion seat to provide comfort on those long rides.
    • Floor boardwith large holes for mud evacuation, and special rugs to avoid buildup from underneath.
    • Water resistant storage
    • Centralize wiring layout, positioned for improved protection against the elements.
    • LCD Gauge includes Odometer, Trip 1, Trip 2, Clock, Fuel gauge and Gear position
    • Warning indicators: Engine, Water Temp., Reverse, Neutral, Parking, High Range, Low Range and LCD Drive / Differential Lock map .
    • 35W Halogen headlight bulbs
    • Neodymium hi-power magnet for improved output, charging capacity and light weight.
    • Forged Aluminum steering knuckle
    • Gate type transmission shifter for improved shift feel.
    • Cartridge type oil filter located to the front of the engine for improved cooling and simplified maintenance
    • Carburized Chrome-Moly connecting rod for improved durability

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, liquid cooled, 4-valve, single
    Displacement 686 cc
    Bore x Stroke 102 x 84mm
    Engine Cooling Liquid Cooled
    Starting System Ignition: computerized DC-CDI; Starting: electric w/auto-decompression
    Chassis
    Front Suspension independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    Front Brake Type Hydraulic Discs
    Front Tires Dunlop KT421 tubeless, AT25 x 8-12
    Rear Suspension independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    Rear Brake Type Hydraulic Discs
    Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
    Dimensions/Capacities
    Dry Weight 270 kg (600 lb)
    Towing Capacity 600 kg (1,322 lb)
    Fuel Capacity 20 litres (5.3 U.S. gal)
    Ground Clearance 300 mm (11.8")
    Machine Dimensions (LxWxH) Length: 2065 mm (81.3"); Width: 1180 mm (46.5"); Height: 1240 mm (48.8")
    Wheelbase 1250 mm (49.2")
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    General
    Colors Realtree® AP HD™ Camouflage

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Grizzly 700 FI EPS Camo AP HD
    Style Utility
    MSRP* $12,949.00
    Chassis
    Front Suspension independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    Front Travel
    Front Brake Type Hydraulic Discs
    Front Tires Dunlop KT421 tubeless, AT25 x 8-12
    Rear Suspension independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    Rear Travel
    Rear Brake Type Hydraulic Discs
    Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
    Frame
    Dimensions/Capacities
    Dry Weight 270 kg (600 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 600 kg (1,322 lb)
    Fuel Capacity 20 litres (5.3 U.S. gal)
    Ground Clearance 300 mm (11.8")
    Machine Dimensions (LxWxH) Length: 2065 mm (81.3"); Width: 1180 mm (46.5"); Height: 1240 mm (48.8")
    Wheelbase 1250 mm (49.2")
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    Engine
    Engine Type 4-stroke, SOHC, liquid cooled, 4-valve, single
    Displacement 686 cc
    Bore x Stroke 102 x 84mm
    Cylinders
    Engine Cooling Liquid Cooled
    Fuel System
    Starting System Ignition: computerized DC-CDI; Starting: electric w/auto-decompression
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Realtree® AP HD™ Camouflage
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
