$12,499.00

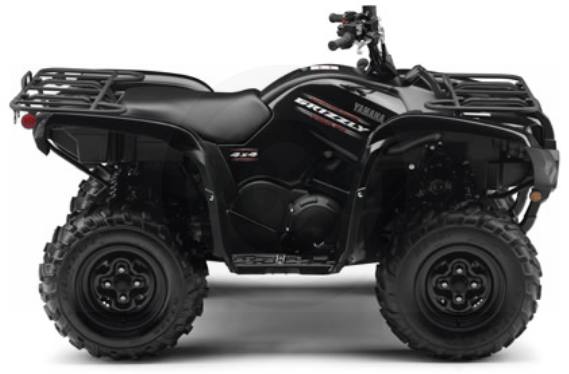

2010 Yamaha Grizzly 700 FI EPS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Specifications
    • Engine: 4-stroke, SOHC, liquid cooled, 4-valve, single
    • Displacement; 686 cc
    • Bore and Stroke; 102 x 84 mm
    • Compression Ratio; 9.2: 1
    • Carburetion: Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
    • Ignition: computerized DC-CDI
    • Starting: electric w/auto-decompression
    • Lubrication: wet sump
    • Oil Capacity: 2.4L
    • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Chassis Specifications
    • Suspension (Front): independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    • Suspension (Rear): independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    • Brakes (Front): Hydraulic Discs
    • Brakes (Rear): Hydraulic Discs
    • Tires (Front): Dunlop KT421 tubeless, AT25 x 8-12
    • Tires (Rear): Dunlop KT425 tubeless, AT25 x 10-12
    Critical Data
    • Length: 2065 mm (81.3")
    • Width: 1180 mm (46.5")
    • Height: 1240 mm (48.8")
    • Wheelbase: 1250 mm (49.2")
    • Ground Clearance: 300 mm (11.8")
    • Seat Height: 905 mm (35.6")
    • Dry Weight: 272 kg (600 lb)
    • Fuel Capacity: 20 litres (5.3 U.S. gal)
    • Towing Capacity: 600 kg (1,322 lb)
    • Colour(s): Dark Blue, Black

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, liquid cooled, 4-valve, single
    Displacement 686 cc
    Bore x Stroke 102 x 84 mm
    Engine Cooling liquid cooled
    Starting System Ignition: computerized DC-CDI; Starting: electric w/auto-decompression
    Chassis
    Front Suspension independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    Front Brake Type Hydraulic Discs
    Front Tires Dunlop KT421 tubeless, AT25 x 8-12
    Rear Suspension independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    Rear Brake Type Hydraulic Discs
    Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
    Dimensions/Capacities
    Dry Weight 272 kg (600 lb)
    Towing Capacity 600 kg (1,322 lb)
    Fuel Capacity 20 litres (5.3 U.S. gal)
    Ground Clearance 300 mm (11.8")
    Machine Dimensions (LxWxH) Length: 2065 mm (81.3"); Width: 1180 mm (46.5"); Height: 1240 mm (48.8")
    Wheelbase 1250 mm (49.2")
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    General
    Colors Dark Blue, Black

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Grizzly 700 FI EPS
    Style Utility
    MSRP* $12,499.00
    Chassis
    Front Suspension independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
    Front Travel
    Front Brake Type Hydraulic Discs
    Front Tires Dunlop KT421 tubeless, AT25 x 8-12
    Rear Suspension independent, reverse mounted dual A-arm with sway bar, adjustable shocks
    Rear Travel
    Rear Brake Type Hydraulic Discs
    Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
    Frame
    Dimensions/Capacities
    Dry Weight 272 kg (600 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 600 kg (1,322 lb)
    Fuel Capacity 20 litres (5.3 U.S. gal)
    Ground Clearance 300 mm (11.8")
    Machine Dimensions (LxWxH) Length: 2065 mm (81.3"); Width: 1180 mm (46.5"); Height: 1240 mm (48.8")
    Wheelbase 1250 mm (49.2")
    Drive Train
    Drive Train
    Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
    Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
    Engine
    Engine Type 4-stroke, SOHC, liquid cooled, 4-valve, single
    Displacement 686 cc
    Bore x Stroke 102 x 84 mm
    Cylinders
    Engine Cooling liquid cooled
    Fuel System
    Starting System Ignition: computerized DC-CDI; Starting: electric w/auto-decompression
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Dark Blue, Black
    Warranty
