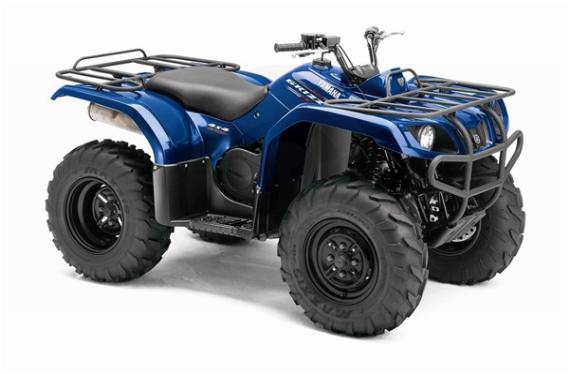

2010 Yamaha Grizzly 350 Auto. 4X4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • The power-packed, full-featured Grizzly 350 Automatic 4x4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package.
    • Class-exclusive fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and class-exclusive front-/rear-wheel downhill engine braking.
    • Class-exclusive On-Command® 4WD means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.
    • Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.
    • Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.
    • Class-exclusive wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.
    • Class-exclusive large-diameter ventilated hydraulic dual front disc and single rear drum brakes deliver tremendous stopping power in a variety of conditions.
    Engine Features
    • Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
    • Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
    • Pushbutton electric starting is backed up by an auxiliary recoil starter.
    • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
    • Fully sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
    • Automatic cam chain tensioner reduces engine maintenance.
    Chassis/Suspension Features
    • Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
    • 9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
    • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
    • 32.6-inch seat height for great handling.
    • Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.
    • Sturdy steel swingarm and single rear shock feature five-way adjustable preload and 7.1 inches of travel.
    • Aggressive 25x8-12 front and 25x10-12 rear tires further boost ground clearance while providing great traction and responsive handling.
    • Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.
    Additional Features
    • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
    • Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
    • Large front and rear fenders with inner guards offer excellent mud/splash protection.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Plush, specially designed seat is widely contoured for incomparable rider comfort.
    • Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
    • Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
    • Easy-access, tool-free air filter box allows for quick maintenance.
    • Rear brake/taillight.
    • Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
    • Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
    • Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
    • Easy, handlebar-mounted choke lever.
    • Built in Newnan, GA, USA.
    Engine Specifications
    • Type: 348cc, 4-stroke, air/oil-cooled single; SOHC
    • Bore x Stroke: 83.0mm x 64.5mm
    • Compression Ratio: 9.2:1
    • Fuel Delivery: Mikuni® 33mm BSR
    • Ignition: DC - CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R
    • Drive Train: Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 6.3-in travel
    • Suspension/Rear: Swingarm; 5-way preload adjustment, 7.1-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Fully sealed drum
    • Tires/Front: AT25x8-12
    • Tires/Rear: AT25x10-12
    Dimensions
    • L x W x H: 78.1 x 42.7 x 44.1 in
    • Seat Height: 32.6 in
    • Wheelbase: 48.5 in
    • Turning Radius: 118 in
    • Ground Clearance: 9.7 in
    • Fuel Capacity: 3.8 gal
    • Wet Weight: 568 lb
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 1102 lb
    Other Specifications
    • Instrumentation: None
    • Lighting:Dual 30W Krypton multireflector headlights & 21W/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 348cc, 4-stroke, air/oil-cooled single; SOHC
    Displacement 348cc
    Bore x Stroke 83.0mm x 64.5mm
    Engine Cooling air/oil-cooled
    Starting System Ignition: DC - CDI; Starting System: Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment.
    Front Travel 6.3-in. travel
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Swingarm; 5-way preload adjustment.
    Rear Travel 7.1-in. travel
    Rear Brake Type Fully sealed drum
    Rear Tires AT25x10-12
    Dimensions/Capacities
    Front Rack Capacity 88 lb Fr./176 lb Rr.
    Rear Rack Capacity 176 lbs.
    Towing Capacity 1102 lb
    Fuel Capacity 3.8 gal
    Ground Clearance 9.7 in
    Machine Dimensions (LxWxH) 78.1 x 42.7 x 44.1 in
    Wheelbase 48.5 in
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Grizzly 350 Auto. 4X4
    Style Utility
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment.
    Front Travel 6.3-in. travel
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Swingarm; 5-way preload adjustment.
    Rear Travel 7.1-in. travel
    Rear Brake Type Fully sealed drum
    Rear Tires AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight
    Front Rack Capacity 88 lb Fr./176 lb Rr.
    Rear Rack Capacity 176 lbs.
    Towing Capacity 1102 lb
    Fuel Capacity 3.8 gal
    Ground Clearance 9.7 in
    Machine Dimensions (LxWxH) 78.1 x 42.7 x 44.1 in
    Wheelbase 48.5 in
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R
    Engine
    Engine Type 348cc, 4-stroke, air/oil-cooled single; SOHC
    Displacement 348cc
    Bore x Stroke 83.0mm x 64.5mm
    Cylinders
    Engine Cooling air/oil-cooled
    Fuel System
    Starting System Ignition: DC - CDI; Starting System: Electric w/auxiliary pull
    Alternator
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green
    Warranty 6 Month (Limited Factory Warranty)

    Current Promotions

    There are currently no promotions available for this product.
