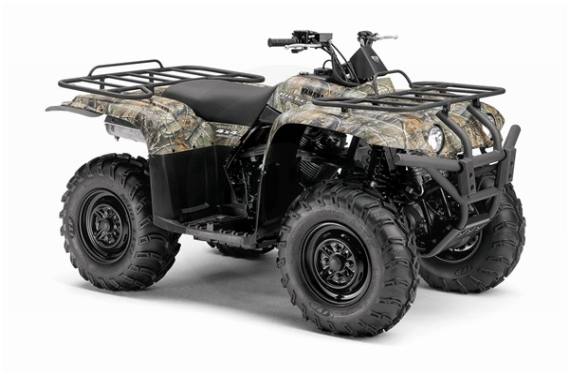

2010 Yamaha Big Bear 400 4x4 IRS Camo
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Potent, 386cc air/oil-cooled, SOHC four-stroke single delivers reliable, class-leading low-end and midrange power to tackle the hardest chores and toughest trails.
    • Independent rear suspension offers excellent terrainability and all-day comfort.
    • Class-exclusive, pushbutton On-Command® with Diff. Lock makes switching from 2WD to 4WD to 4WD Diff Lock a snap.
    • Constant-mesh five-speed transmission with automatic clutch, reverse and super-low stump-pulling first gear means this is one hard-working ATV.
    • Sealed wet brake out back provides long-lasting, consistent stopping power in even the harshest conditions.
    • Full floorboards and high ground clearance keep the rider high and as dry as possible.
    • Pushbutton electric starting in any gear is backed up by an auxiliary recoil starter.
    Engine Features
    • Simple yet powerful 386cc air/oil-cooled, SOHC engine inhales through a heated, semi-oval slide 33mm BSR Mikuni® carburetor for seamless throttle response and excellent all-weather performance.
    • DC-CDI ignition system ensures dependable starting and puts out consistent spark at all rpm for optimal engine performance.
    • Large-capacity oil cooler with cooling fan helps maximize engine efficiency, even under heavy loads.
    • Stainless steel muffler and header provide superior power characteristics, exhaust sound and unmatched durability.
    • Tool-free, easy-access air filter box.
    • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
    Chassis/Suspension Features
    • Special compact frame design uses fewer components to reduce weight and provide lighter steering, a tighter turning radius and superior durability.
    • Class-leading turning radius provides maximum maneuverability on tight trails and while working with heavy equipment.
    • Independent rear suspension provides excellent handling and all day comfort.
    • High-tech sealed wet brake provides consistent, long-lasting braking performance in hostile environments.
    • On-Command® drive selection with Diff. Lock lets you access full power from 4WD locked.
    • Low seat height for great handling.
    • Plenty of ground clearance and a high mount air intake makes this machine ready for muddy conditions.
    • Independent double-wishbone front suspension with five-way preload-adjustable shocks and 5.8 inches of travel.
    • Large-diameter ventilated hydraulic front disc brakes and a sealed rear wet brake provide plenty of stopping power in a variety of conditions.
    • Reliable, low-maintenance front and rear shaft drive.
    • Huge 25x8-12 front and 25x10-12 rear ITP® Mud Lite tires further boost ground clearance while providing great handling and traction.
    • Specially designed A-arms with removable ball joints provide smooth operation and outstanding reliability.
    • Built-in winch mounts.
    Additional Features
    • Wrinkle-finish cargo racks are super-durable and can pack a class-leading total of 264 pounds (88 front, 176 rear) of payload.
    • Speedometer with odometer/tripmeter adds greater versatility and allows rider to keep track of engine maintenance intervals.
    • Standard center-mounted trailer hitch can hook up more than 900 pounds of payload.
    • Full floorboards, lots of ground clearance and a high-mount air intake are ready for mud.
    • Flat-style handlebars help provide light steering effort and great rider comfort.
    • Large front and rear fenders with inner splash guards offer excellent mud and splash protection.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Heavy-duty, full-coverage A-arm and CV joint boot protectors help prevent damage to boot covers.
    • Specially designed, thickly padded seat is widely contoured for incomparable rider comfort.
    • Large-capacity, 4-gallon fuel tank has a built-in gauge.
    • Mud and water-resistant automotive-type DC power outlet powers a wide range of accessories.
    • Rugged, serrated footrests provide excellent grip and rider comfort with superb durability.
    • Maintenance-free 18-amp-hour battery provides extra starting power.
    • Underseat marine-spec electrical components ensure maximum protection from the elements and easy access.
    • Bright multireflector 30-watt headlights feature wide positioning to maximize low-light and nighttime visibility.
    • Easy-to-use, handlebar-mounted parking brake and choke lever.
    • Built in Newnan, GA, USA.
    Engine Specifications
    • Type: 386cc, 4-stroke, air-/oil-cooled single; SOHC
    • Bore x Stroke: 83.0mm x 71.5mm
    • Compression Ratio: 8.6:1
    • Fuel Delivery: Mikuni® 33mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 5.8-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 7.6-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Sealed oil bathed, multi disc
    • Tires/Front: AT25 x 8-12 ITP® Mud Lite
    • Tires/Rear: AT25 x 10-12 ITP® Mud Lite
    Dimensions
    • L x W x H: 79.4 x 43.9 x 46.7 in
    • Seat Height: 35.2 in
    • Wheelbase: 48.4 in
    • Turning Radius: 126 in
    • Ground Clearance: 10.5 in
    • Fuel Capacity: 4.0 gal
    • Wet Weight: 628 lb
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 904 lb
    Other Specifications
    • Instrumentation: Speedometer, odometer & fuel gauge
    • Lighting: Dual 30W Krypton multireflector headlights & 21/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 386cc, 4-stroke, air-/oil-cooled single; SOHC
    Displacement 386cc
    Bore x Stroke 83.0mm x 71.5mm
    Engine Cooling air/oil-cooled
    Fuel System Mikuni® 33mm BSR
    Starting System Ignition: DC-CDI; Starting System: Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment.
    Front Travel 5.8-in travel
    Front Brake Type Dual hydraulic discs
    Front Tires AT25 x 8-12 ITP® Mud Lite
    Rear Travel 7.6-in travel
    Rear Suspension Independent double wishbone; 5-way preload adjustment.
    Rear Brake Type Sealed oil bathed, multi disc
    Rear Tires AT25 x 10-12 ITP® Mud Lite
    Dimensions/Capacities
    Front Rack Capacity 88 lb Fr./176 lb Rr.
    Rear Rack Capacity 176 lbs.
    Towing Capacity 904 lb
    Fuel Capacity 4.0 gal
    Ground Clearance 10.5 in
    Machine Dimensions (LxWxH) 79.4 x 43.9 x 46.7 in
    Wheelbase 48.4 in
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
    Colors Realtree AP Camo
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Big Bear 400 4x4 IRS Camo
    Style Utility
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment.
    Front Travel 5.8-in travel
    Front Brake Type Dual hydraulic discs
    Front Tires AT25 x 8-12 ITP® Mud Lite
    Rear Suspension Independent double wishbone; 5-way preload adjustment.
    Rear Travel 7.6-in travel
    Rear Brake Type Sealed oil bathed, multi disc
    Rear Tires AT25 x 10-12 ITP® Mud Lite
    Frame
    Dimensions/Capacities
    Dry Weight
    Front Rack Capacity 88 lb Fr./176 lb Rr.
    Rear Rack Capacity 176 lbs.
    Towing Capacity 904 lb
    Fuel Capacity 4.0 gal
    Ground Clearance 10.5 in
    Machine Dimensions (LxWxH) 79.4 x 43.9 x 46.7 in
    Wheelbase 48.4 in
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    Engine
    Engine Type 386cc, 4-stroke, air-/oil-cooled single; SOHC
    Displacement 386cc
    Bore x Stroke 83.0mm x 71.5mm
    Cylinders
    Engine Cooling air/oil-cooled
    Fuel System Mikuni® 33mm BSR
    Starting System Ignition: DC-CDI; Starting System: Electric w/auxiliary pull
    Alternator
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
    Colors Realtree AP Camo
    Warranty 6 Month (Limited Factory Warranty)
