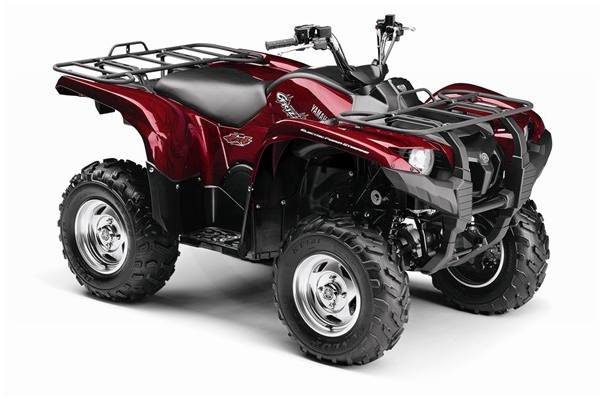

2010 Yamaha Grizzly 550 FI AUTO, 4X4 EPS Special Edition
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • The Grizzly 550 Special Edition comes with cast aluminum wheels, water dipped body panels and special graphics.
    • The 500cc class has a new leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a new 558cc powerplant, Electric Power Steering and excellent value.
    • Electronic fuel injection means instantaneous cold starts and optimal performance in nearly any condition, from below sea level to 15,000 feet.
    • Electric Power Steering system lightens steering for superior comfort and terrainability.
    • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and industry-exclusive all-wheel downhill engine braking.
    • Industry-exclusive, three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with a simple push of a button.
    • Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear for maximum control and comfort over rough terrain.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hourmeter that counts hours that the engine is running, 4WD status, transmission position, clock and fuel gauge.
    Engine Features
    • This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
    • Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
    • New cylinder head has been optimized for this 558cc engine to deliver excellent throttle response and low-end power, with needle-roller rocker arms to reduce friction for fuel efficiency and torque.
    • Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
    • Yamaha Fuel Injection uses a new Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
    • High-capacity aluminum radiator with newly designed fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
    • 5-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic® transmission control.
    • Electronic servo-activated 2WD/4WD/Diff Lock via the On-Command® system.
    Chassis/Suspension Features
    • Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
    • New front and rear lower A-arm guards offer excellent protection and Grizzly 550 features WideArc front A-arms for outstanding ground clearance that’s 5 inches wider than that provided by ordinary designs.
    • New CV boots are made of tough polyethylene for more durability than typical rubber boots.
    • Four-wheel hydraulic disc brakes serve up consistent, longlasting braking power under all sorts of nasty conditions.
    • Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.
    Additional Features
    • Electric Power Steering. This assist feature, pioneered by Yamaha on the Grizzly 700 FI EPS, lightens steering for superior comfort and terrainability.
    • Dual 35-watt multi-reflector halogen bulb headlights with high/low beams light up the night.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hourmeter that counts hours that the engine is running, 4WD status, transmission position, clock and fuel gauge.
    Engine Specifications
    • Type: 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    • Bore x Stroke: 92.0 x 84.0mm
    • Compression Ratio: 9.3:1
    • Fuel Delivery: Yamaha Fuel Injection (YFI), 40mm
    • Ignition: TCI, 32-bit ECU
    • Starting System: Electric
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 9.5-in travel
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Dual hydraulic disc
    • Tires/Front: AT25 x 8-12
    • Tires/Rear: AT25 x 10-12
    Dimensions
    • L x W x H: 81.3 x 46.5 x 48.8 in
    • Seat Height: 35.6 in
    • Wheelbase: 49.2 in
    • Turning Radius: 126 in
    • Ground Clearance: 11.8 in
    • Fuel Capacity: 5.3 gal
    • Wet Weight: 648 lb
    • Rack Capacity: 99 lb Fr./187 lb Rr.
    • Towing Capacity: 1322 lb
    Other Specifications
    • Instrumentation: Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hourmeter, clock, fuel gau
    • Lighting: Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    Displacement 558cc
    Bore x Stroke 92.0 x 84.0mm
    Engine Cooling Liquid-cooled
    Starting System Ignition: TCI, 32-bit ECU; Starting System: Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment,
    Front Travel 7.1-in. travel
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment,
    Rear Travel 9.5-in. travel
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12
    Dimensions/Capacities
    Front Rack Capacity 99 lbs.
    Rear Rack Capacity 187 lbs.
    Towing Capacity 1322 lbs.
    Fuel Capacity 5.3 gal.
    Ground Clearance 11.8 in.
    Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    Colors Red Midnight Armor
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Grizzly 550 FI AUTO, 4X4 EPS Special Edition
    Style Utility
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment,
    Front Travel 7.1-in. travel
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment,
    Rear Travel 9.5-in. travel
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12
    Frame
    Dimensions/Capacities
    Dry Weight
    Front Rack Capacity 99 lbs.
    Rear Rack Capacity 187 lbs.
    Towing Capacity 1322 lbs.
    Fuel Capacity 5.3 gal.
    Ground Clearance 11.8 in.
    Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    Engine
    Engine Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    Displacement 558cc
    Bore x Stroke 92.0 x 84.0mm
    Cylinders
    Engine Cooling Liquid-cooled
    Fuel System
    Starting System Ignition: TCI, 32-bit ECU; Starting System: Electric
    Alternator
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
    Colors Red Midnight Armor
    Warranty 6 Month (Limited Factory Warranty)
