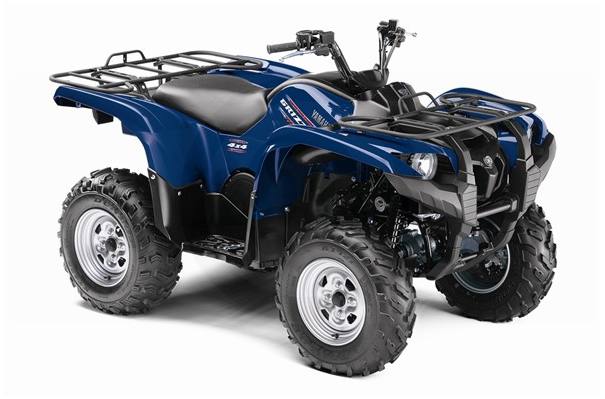

2010 Yamaha Grizzly 700 FI Auto. 4X4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • This most powerful Grizzly with its 686cc liquid cooled, four-stroke engine and light weight has to the best power-to-weight ratio of any utility model in the industry.
    • Yamaha Fuel Injection means instantaneous cold starts and optimal performance in all conditions and at all altitudes.
    • Industry first: Electronic Power Steering system lightens steering for superior comfort and less rider fatigue.
    • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and industry-exclusive all-wheel downhill engine braking.
    • Industry-exclusive, three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with the simple push of a button.
    • Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
    Engine Features
    • Raptor™-based four-valve combustion chamber design produces a potent combination of low-rev torque, right-now throttle response and high horsepower.
    • Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
    • Gear-driven crankshaft balancer shaft and rubber-damper engine mounts reduce vibration.
    • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
    • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
    • Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
    • Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
    • Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration and maintenance.
    • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
    • High-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
    • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
    • Five-position shift lever with H, L, N, R and P gates provides positive Ultramatic® transmission operation.
    • Override button allows engine to make maximum rpm in full Diff. Lock mode.
    • Electronic servo-activated 2WD/4WD/Diff. Lock via the On-Command® system.
    • Sealed drive case keeps out water and debris to help prevent belt from slipping.
    Chassis/Suspension Features
    • Comfortable chassis provides outstanding handling and maneuverability.
    • WideArc™ front suspension A-arms provide outstanding ground clearance.
    • Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
    • Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
    • Electronic power steering varies assist according to speed and rpm for increased comfort and incredible maneuverability—even in 4WD.
    • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
    • 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
    • 25x8-12 front and 25x10-12 rear Dunlop® tires provide responsive steering and handling and excellent comfort.
    • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
    Additional Features
    • Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
    • LCD instrument display contains fuel injection and electronic power steering information, as well as bar-type fuel gauge, odometer, trip meter, clock and Diff. Lock indicator.
    • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
    • Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
    • Dual 35-watt multireflector halogen bulb headlights with high/low beams light up the night.
    Engine Specifications
    • Type: 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    • Bore x Stroke: 102.0mm x 84.0mm
    • Compression Ratio: 9.2:1
    • Fuel Delivery: Yamaha Fuel Injection (YFI), 44mm
    • Ignition: 32 Bit ECU
    • Starting System: Electric
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 9.5-in travel
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Dual hydraulic disc
    • Tires/Front: AT25 x 8-12 w/aluminum wheels
    • Tires/Rear: AT25 x 10-12 w/aluminum wheels
    Dimensions
    • L x W x H: 81.3 x 46.5 x 48.8 in
    • Seat Height: 35.6 in
    • Wheelbase: 49.2 in
    • Turning Radius: 126 in
    • Ground Clearance: 11.8 in
    • Fuel Capacity: 5.3 gal
    • Wet Weight: 648 lb
    • Rack Capacity: 99 lb Fr./187 lb Rr.
    • Towing Capacity: 1322 lb
    Other Specifications
    • Instrumentation: Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hourmeter, clock, fuel gauge, gear position, EPS and EFI function
    • Lighting: Dual 35W Halogen multireflector headlights & 21W/5W brakelight

    Specifications

    Engine
    Engine Type 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
    Displacement 686cc
    Bore x Stroke 102.0mm x 84.0mm
    Engine Cooling liquid-cooled
    Starting System Ignition: 32 Bit ECU; Starting System: Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment.
    Front Travel 7.1-in. travel
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12 w/aluminum wheels
    Rear Travel 9.5-in. travel
    Rear Suspension Independent double wishbone; 5-way preload adjustment.
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12 w/aluminum wheels
    Dimensions/Capacities
    Front Rack Capacity 99 lbs.
    Rear Rack Capacity 187 lbs.
    Towing Capacity 1322 lbs.
    Fuel Capacity 5.3 gal.
    Ground Clearance 11.8 in.
    Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
    General
    Speedometer Digital
    Tachometer Digital
    Odometer Digital
    Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green
